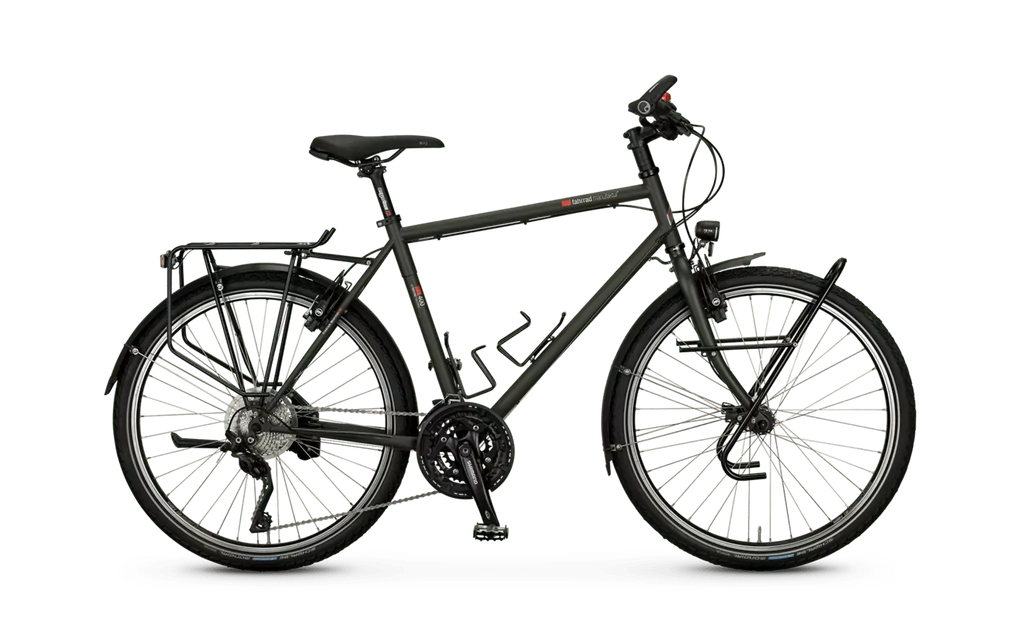

TX-400 ROADSTER DEORE-XT 30SP HS33

Item: 102320032
SIZE

The TX-400 is the perfect bike for cycle touring in the America's. It's been a long established notion that cycle-tourists travelling through Central and South America are best served by a 26" touring bike since this is the dominant wheel size in that area. And, while it's certainly true that 700c wheels are becoming increasingly popular in these areas, the touring ethos is often to stick to what's most reliable. While the smaller wheels can't compete with larger wheels for efficiency (or even footprint, as most 700c wheels are now 50mm wide), they are strong as nails and you'll always be able to find a tube.

The Fahrradmanufaktur TX-400 is the true evolution of the touring bike. Whereas in North America the touring bike has been a low-iteration boom-and-bust artifact, the European market has seen steady growth; and with this, steady maturation. Perhaps the biggest evidence is lack of drop bars. North American touring bikes use drop bars to offer multiple hand positions - important when you're riding all day. But drop handlebars require that you 'drop' your position, great for racing bikes but not necessary for touring. European touring bikes provide multi-position on a horizontal plane rather than a vertical plane; this makes all the difference.

The TX-400 is a clever mix of geometry and parts. The long wheelbase displaces weight over a longer footprint, providing stability, and the seat and head angles prioritize comfort, control and efficiency. The top-of-the-line Shimano XT drivetrain is incredibly durable has a massive 570% gear range, letting you power fully-loaded up the steepest grades. The tried-and-tested Magura HS33 hydraulic rim brakes will slow and stop on the steepest hills on the rainiest days. Add the low-drag SP hub and super-bright 70 LUX Busch & Muller dynamo lights and you're safe those nights you arrive late (great safety as daytime running lights too). Finally, the Tubus racks - an absolute cult-like brand in the touring world - rounds out the TX-400 to the perfect travel companion.

  • Questions? Book a sales appointment with one of our Touring Bike experts
  • Special Order Only
  • Touring frame designed for your next big adventure
  • Double butted Cromoly Steel frame is strong, lightweight and comfortable
  • Full Shimano XT drivetrain with massive gear range
  • Ultra reliable Magura HS33 hydraulic rim brakes - made in Germany
  • Full suite of Tubus touring racks - made in Germany
  • Top-end Busch & Muller lighting with 700LUX output
  • Low drag and lightweight Shutter Precision dynamo hub
  • Unbreakable, lightweight ChromoPlastic SKS fenders
  • Ergon GP3 Multi-position grips
  • Strong and lightweight double walled rims
  • Schwalbe Marathon Mondial tires are fast AND puncture-resistant
  • Strong side mount kick stand - made in Switzerland
  • Weight: 16.32 kg / 35.97 lb



    FAHRRADMANUFAKTUR TX-400 EXPEDITION
    FRAME 25 CrMo 4, double-butted - Powdercoated
    FORK 25 CrMo 4, double-butted - Powdercoated
    HEADSET Ritchey Comp Logic V2, 1-1/8”
    STEM Ergotec Piranha 2 - 31.8 mm - made in Germany
    HANDLEBAR Ergotec Trekking 31.8 mm - made in Germany
    GRIPS ErgonGP3 Multiposition - made in Germany
    SEATPOST Humpert Skalar - Made in Germany
    SEAT Selle Royal Scientia- Made in Italy
    BRAKES Magura HS33 Hydraulic Rim Brakes
    BRAKE LEVERS Magura HS33
    SHIFTER Shimano Deore
    FRONT HUB Shutter Precision PV-8 Dynamo
    REAR HUB Shimano Deore
    SPOKES ED 2.34 (13G) Stainless Steel, 36 Spokes
    RIMS Schürmann YAK19 - Made in Germany
    TIRES Schwalbe Marathon Mondial, 50-599
    BOTTOM BRACKET Shimano Deore Octalink
    DERAILLEURS Shimano XT (Front and rear)
    CRANKS Shimano Deore, 170mm, HT2, 48/36/26 tooth
    CHAIN Shimano HG-54
    COGSET Shimano Deore HG-50, 11-34 tooth
    PEDALS VP-196 Aluminium
    KICKSTAND Hebie 0611, rear stand - made in Germany
    FRONT LIGHT Busch&Muller Lumotec IQ-XS, 70 LUX - made in Germany
    REAR LIGHT Busch&Muller Line Small LED - made in Germany
    REAR RACK Tubus Cargo Evo - made in Germany
    FRONT RACK Tubus Tara Lowrider - made in Germany
    FENDERS

    SKS ChromoPlastic - made in Germany



    FAHRRADMANUFAKTUR TX-400

    FROM TO
    47CM 5' 6" 5' 9"
    52CM 5' 9" 6' 1"
    57CM 6' 1" 6' 5"



    Fahrradmanufaktur Brands Logo
    FAHRRADMANUFAKTUR COMPANY HISTORY: Fahrradmanufaktur (literally: bike manufacturer) builds strong, lightweight steel and aluminum bikes that are made for the sprawl of Berlin and the hills of North America. Fahrradmanufaktur originated with a group of Berlin retailers who were witnessing a boom in city cycling. They knew that heavy Dutch bikes couldn't provide solutions for big cities with sprawl and hilly topography. Frustrated with the sporting focus on the German bike industry, they first set up standards and approvals for a "no-nonsense" city bike, which ultimately led them to creating their own. Today Fahrradmanufaktur makes city bikes and touring bikes that are designed for life on two wheels. Fahrradmanufaktur is the evolution of the city bike, and we're pleased to be North America's first Fahrradmanufaktur retailer..
